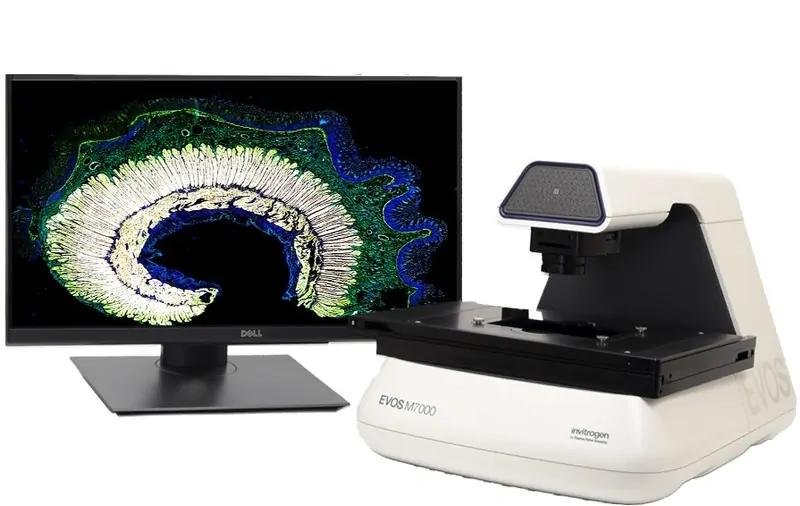

Invitrogen EVOS M7000 Imaging System
EVOS M7000
- 成像模式荧光 / 明场 / 彩色明场 / 相差
- 光学系统无限远校正，RMS 螺纹物镜
- 物镜倍数范围1.25 – 100×
- 物镜数量>30 款可选（LWD/CC）款
- LED 光源寿命>50,000小时
- LED 滤块位5 位（4 荧光 + 明场）位
- 荧光滤块示例DAPI 357/447 / GFP 482/524 / RFP 542/593 / Cy5 635/692nm
- 单色相机3.2 MP CMOS（2048×1536）MP
- 彩色相机3.2 MP CMOS（2048×1536）MP
- 像素尺寸3.45µm
- Z 轴聚焦精度0.15（亚微米）µm
- XY 行程120 × 80mm
- 兼容板型6–384 孔板 / 培养皿 / 培养瓶
- 屏幕23 英寸触摸屏 1920×1080
- 尺寸（W×D×H）45.7 × 33.0 × 35.6cm
- 重量11.8kg
