Diagram · AppearanceBD (Becton Dickinson) · Flow Cytometer · Flow Cytometry

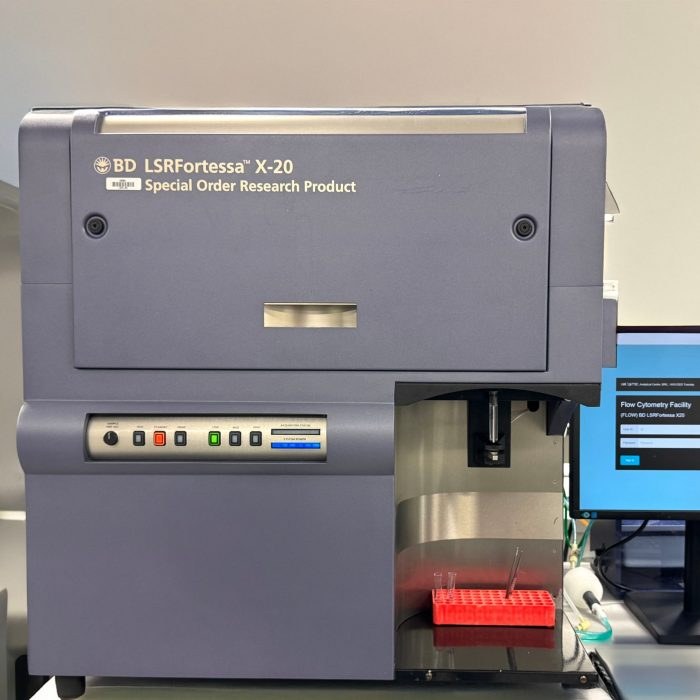

BD LSRFortessa X-20 Cell Analyzer
LSRFortessa X-20
- 激光配置355/405/488/561/640 nm最多 5 台
- 激光功率15/50/50/50/40mW
- Fluorescence channels最多 18色
- 流动室矩形石英 430×180, 凝胶耦合µm
- 收集物镜1.2NA
- 荧光灵敏度FITC 80 / PE 30 / APC 70MESF
- 获取速度40,000events/s
- 预设流速12/35/60µL/min
- 侧向散射分辨分离 0.5 µm 微球与噪声
- 荧光分辨率PI CV <3%
- 高通量96/384 孔板 (HTS)
- 板残留<0.5% (高通量)
- 软件BD FACSDiva v8.0+
- 尺寸76.2×73.7×76.2cm
- 重量约 159kg
Overview
An English overview is not available for this model yet. Names and known spec labels are shown in English.
