Diagram · AppearanceBD (Becton Dickinson) · Flow Cytometer · Flow Cytometry

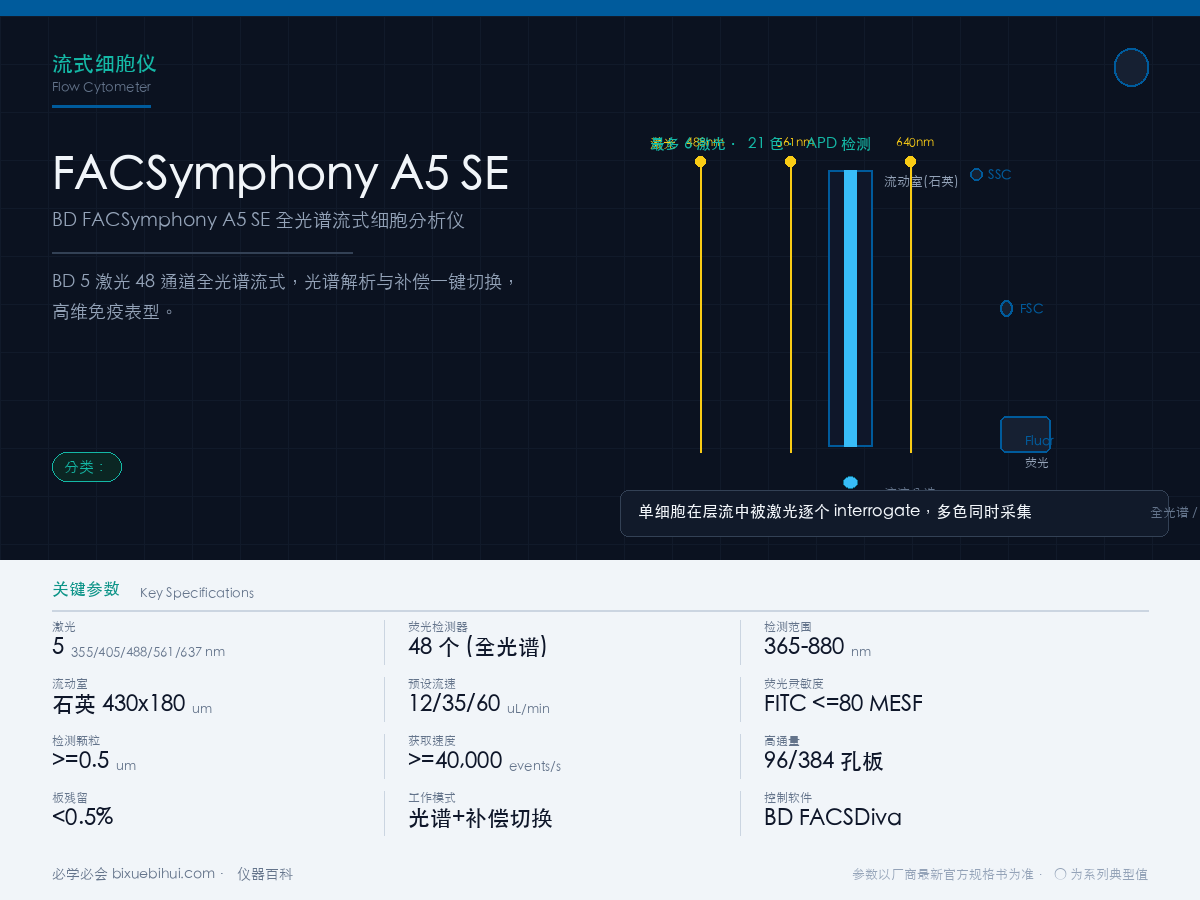

BD FACSymphony A5 SE Cell Analyzer
FACSymphony A5 SE
- 激光配置355/405/488/561/637 nm5 台
- 激光功率60/200/150/150/140mW
- 荧光检测器48 个 (全光谱)
- 光谱覆盖365–880nm
- 流动室石英 430×180µm
- 荧光灵敏度FITC <80 / PE <20 / APC <70MESF
- 获取速度40,000events/s
- 预设流速12/35/60µL/min
- 检测颗粒≥0.5µm
- 荧光分辨率PI CV <3%
- 高通量96/384 孔板 (HTS)
- 板残留<0.5% (高通量模式)
- 工作模式光谱解析 + 经典补偿
- 软件BD FACSDiva v9.3+
- 尺寸101.6×78.7×101.6cm
- 重量215kg
Overview
An English overview is not available for this model yet. Names and known spec labels are shown in English.
